FD-10 series Vacuum freezing dryer(lyophilizer) is widely used in the medical, pharmaceutical, biological, chemical and food and other fields, FD series is suitable for laboratory use or low-volume production to meet the requirements of most laboratories conventional lyophilization.
Features
– Microprocessor control & LCD touch display which can display drying curve, vacuum, condenser temp., run time, ambient temperature. – Pre-freezing function for samples. – Large refrigerating capacity and slight noise of DANFOSS(SECOP) compressor with CFC-FREE refrigerant. – 304 stainless steel of condenser, table-top, racks & shelves to ensure corrosion-resistant and easy to clean; shelves height adjustable. – Transparent drying chamber is safe and easy to observe; – Novel design, small size and easy operation; – For water based samples, the -55°C condenser is the perfect choice with effective cost. For samples containing solvents or with low eutectic points, the -80 C dual cascade refrigeration condenser provides maximum performance (optional). – For labs that needs quick turn-around, electric heating defrost is optional. – Nitrogen inflation valve is available. – It includes the following types: Normal type, Top-press type, multi-manifold T type and multi-manifold Top-press type to meet the various requirements. – CE/ISO 9001 13485 14001 certificated.
Specifications of FD-10 Bench-top type Freeze Dryer
| Model | FD-10-R | FD-10-MR | FD-10-TP | FD-10-MTP | FD-10-MT | |
| Image | ||||||
| Dry chamber size (D*H) | Ф260×430mm | Ф260×465mm | Ф260×490mm | Ф260×540mm | / | |
| Total shelf area | 0.12 m2 | 0.12 m2 | 0.08m2 | 0.08m2 | / | |
| Shelf size(mm) | Ф200*4pcs | Ф200*4pcs | Ф180 * 3pcs | Ф180 * 3pcs | / | |
| Shelf space height (mm) | 70 | 70 | 70 | 70 | / | |
| Shelf number | 4 pcs | 4 pcs | 3 pcs | 3 pcs | / | |
| Trays number | 4 pcs | 4 pcs | 3 pcs | 3 pcs | / | |
| Vials load capacity | Ф12mm | 920 Pcs | 920 Pcs | 560 Pcs | 560 Pcs | 24 ports 430×480mm (H*L) |
| Ф16mm | 480 Pcs | 480 Pcs | 285 Pcs | 285 Pcs | ||
| Ф22mm | 260 Pcs | 260 Pcs | 165 Pcs | 165 Pcs | ||
| Sample load capacity | 1.2L | 1.2L | 0.8L | 0.8L | / | |
| Flask | / | 8 pcs | / | 8 pcs | / | |
| Dry rack | Included | Included | Included | Included | / | |
| Cold trap rack | Included | Included | Included | Included | Included | |
| Condenser Temp. | <-55°C (-80°C or even lower is optional) | |||||
| Cold trap size. | Ф215 * 140 mm (Depth * Height) | |||||
| Ice remove capacity | 3~4kg/24hours | |||||
| Cold type | Air-cooled | |||||
| Defrost type | Natural (Electric is optional) | |||||
| Ultimate Vacuum | <5 Pa (empty) | |||||
| Vacuum pump | Included | |||||
| Pump rate | 2L/S | |||||
| Install Power | 970W | |||||
| Voltage | 220v/50Hz or 110v/60Hz | |||||
| Dimensions | 460*625* (370+430)(mm) | |||||
| Weight | 100 kg | 110kg | 105kg | 120kg | 65kg | |
| Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2C | 2XZ-4C | 2XZ-6C | 2XZ-8C | 2XZ-15C | ||||
| Pumping Speed: L/S | 0.5 | 1 | 2 | 4 | 6 | 8 | 15 | ||||
| Ult. Vacuum Pa | Without gas ballast | ≤6×10-2 | |||||||||
| With gas ballast | ≤6.5 | ≤1.33 | |||||||||
| Speed: r/min(50HZ) | 1400 | ||||||||||
| Power Required: Kw | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | ||||
| Diameter of inlet port: mm | 16 | 16 | 25 | 25 | 40 | 40 | 40 | ||||
| Temp. rise of pump oil: °C | ≯40 | ≯45 | ≯45 | ≯65 | ≯70 | ||||||
| Oil capacity: L | 0.60 | 0.70 | 0.10 | 1.2 | 2.0 | 3.0 | 4.0 | ||||
| Overall Dimensions: mm | 447 168 260 | 469 168 260 | 514 168 282 | 514 168 282 | 565 200 342 | 650 240 430 | 770 240 430 | ||||
| Weight: kg | 16 | 17 | 20 | 22 | 40 | 60 | 75 | ||||
Standard Configuration
– Stainless steel condenser with opening, stainless steel operation tops, seamless welding with round corner which is anti-corrosion and easy to clean – Stainless steel shelf & rack, 4 or 6 pcs shelves optional, shelf removable and spacing height adjustable – Stainless steel pre-cooling rack with metal cover – Integrally molded glass dried barrel adopted special plastic will not break – Used SECOP (DANFOSS) quality compressor, high performance condenser fan, LCD touch display, history data can be stored, searched and exported to computer.
| Model | R | TP | MR | MTP | MT |

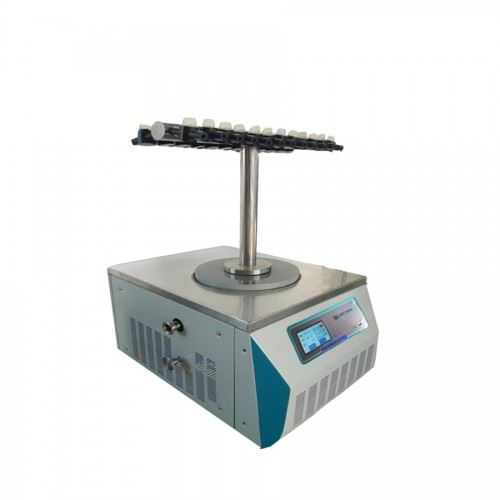

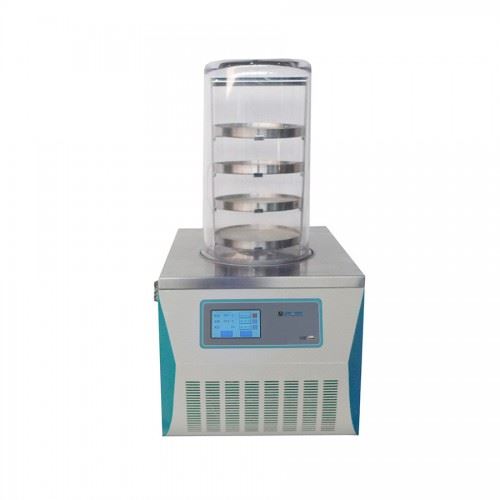

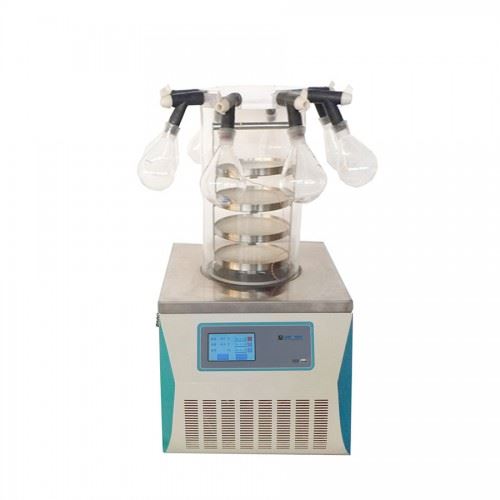

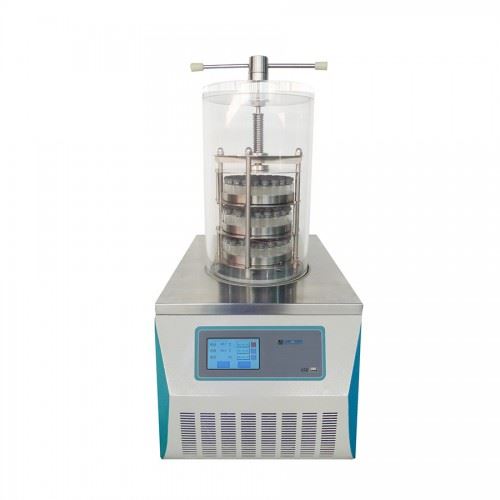

| Description | Normal type | Stopper device | Stopper + flasks | Flasks system | Multi-ports manifold |
| Freeze Dryer | ● | ● | ● | ● | ● |
| Glass barrel | ● | ● | ● | ● | |
| Vacuum pump | ● | ● | ● | ● | ● |
| Stoppering device | ● | ● | |||
| Manifold Ports | 8 ports (28/ 32mm), each 2 in 1000ml, 500ml, 250ml, 100ml |
12 or 24 ports | |||
Optional List
| Item No. | Item Name | Item No. | Item Name |
| FD1001 | -80°C Condenser | FD1009250 | 250ml flask |
| FD1002 | RS232 & Software | FD1009500 | 500ml flask |
| FD1003 | Defrost device | FD10091000 | 1000ml flask |
| FD1004 | Refrigerant R404a, R502, R23 and etc | FD1010 | Leybold vacuum pump |
| FD1005 | Oil mist filter | FD1011 | Touch LCD display |
| FD1006 | Shelves heating & Program segment control Can stored 16 programs, each program can be set up 36segments, correct program data in computing, memorize the drying curve |
FD1012 | Anti-back oil device |
| FD1007 | Additional trays (6pcs) | FD1013 | Eutectic point test device |
| FD1008 | Removable lid for drying drum | FD1014 | Vial capper |
| FD1009100 | 100ml flask | FD1015 | Ampoules sealing machine
|
