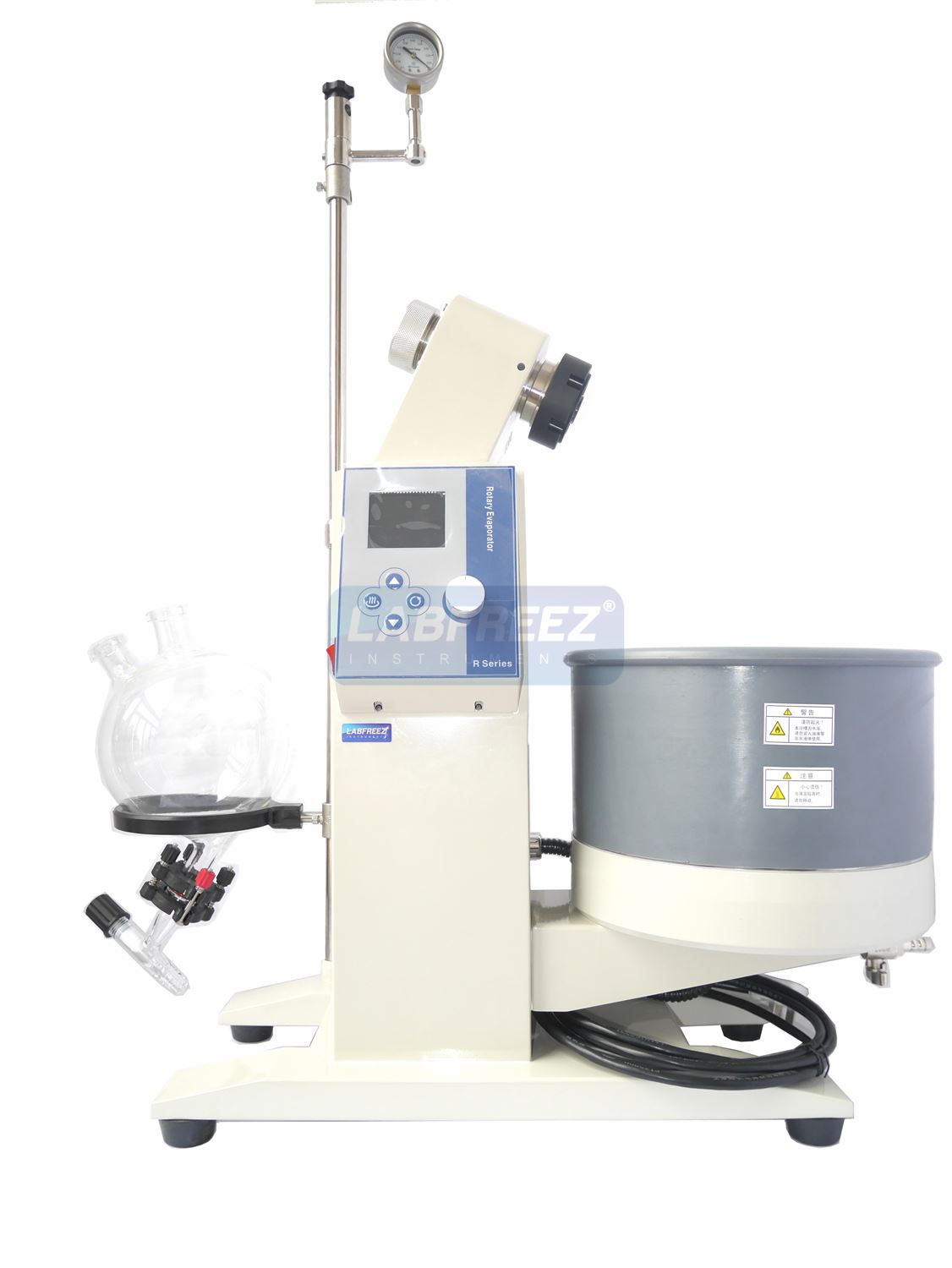

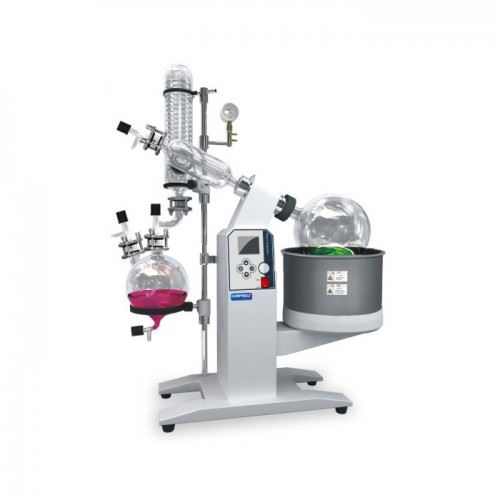

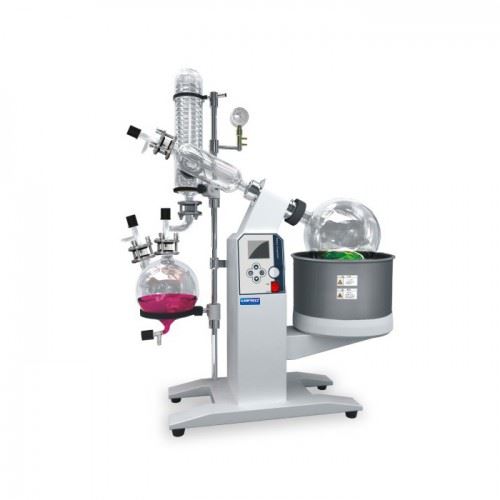

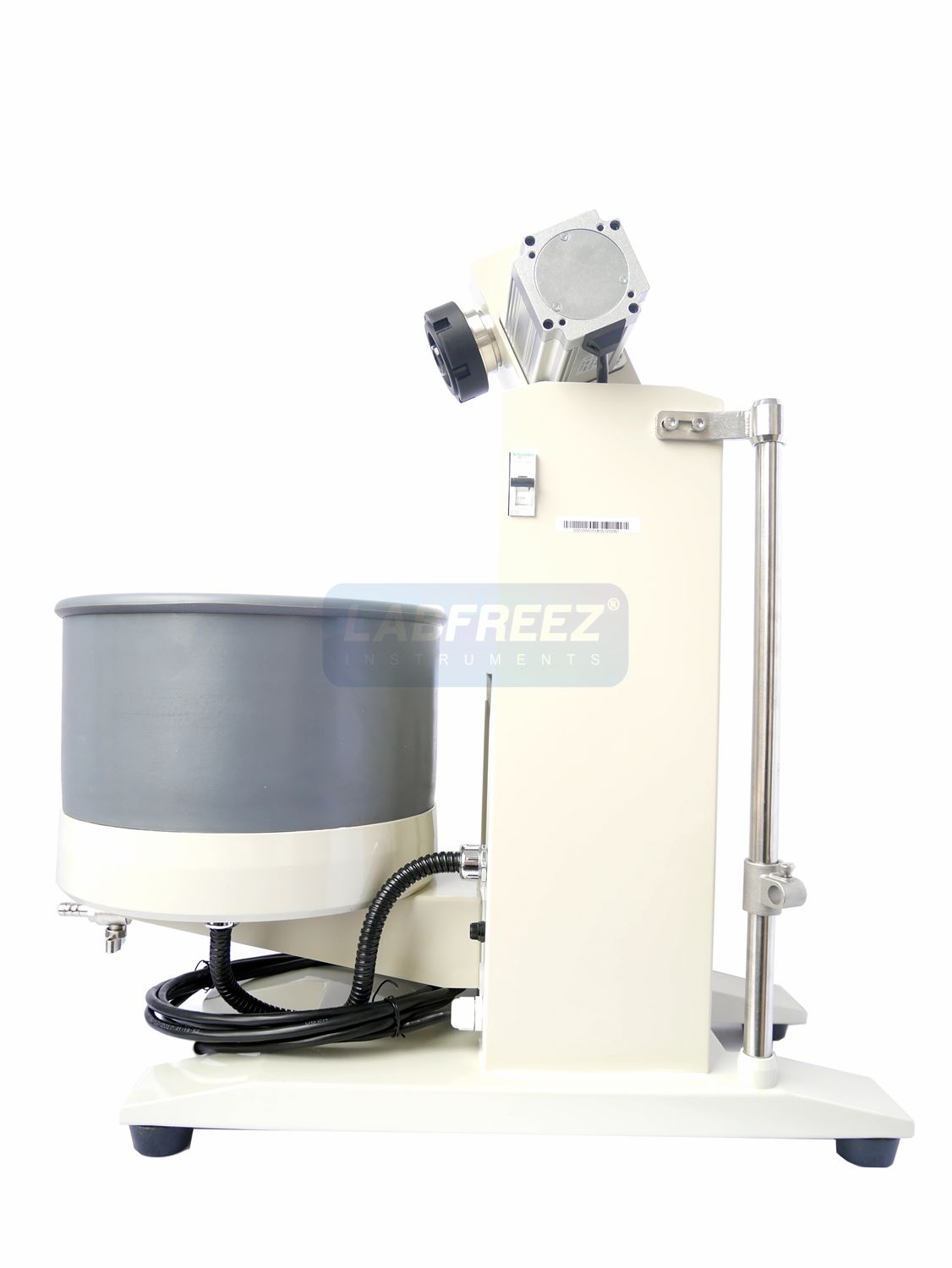

Model: RE-LA Series Usage: RE-LA Series Large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems. Features: – Proof-explosive device is optional – Teflon (PTFE) and fluorine rubber dual rotating seal, patented technology to ensure high vacuum. – the introduction of foreign advanced frequency control system, temperature control system, accurate and reliable. – a vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected. – water bath (oil bath is optional) electric lift and manual lift support, easy to use. – PTEE discharge valve, corrosion resistance, pollution-free. – Additional set of glassware is optional Technical data: Model RE-LA-5 RE-LA-10 RE-LA-20 RE-LA-50 Capacity of Rotary Bottle 5L 10L 20L 50L Flanged diameter Φ50mm Φ95mm Φ95mm Φ125mm Capacity of Collecting bottle 3L 5L 10L 20L Rotary control Digital display, frequency conversion stepless Rotary speed 10to140r/min 10to130r/min 10to130r/min 10to110r/min Power of rotary motor(W) 40W 90W 120W 120W Condensing tube Vertical double serpentine tube Vertical, main + auxiliary cooling and highly efficient three circulating Water Bath Stainless steel water bath (Can be changed to oil bath) Temp. Range Digital display, RT~99°C (Oil bath RT~180°C) Vacuum degree 399.9Pa (below 3mmHg) Evaporating capability Water≥2L/h Alcohol≥4L/h Water≥3.2L/h Alcohol≥6.5L/h Water≥5L/h Alcohol≥11L/h Water≥9L/h Alcohol≥19L/h Elevating mode Electric Electric & manual Elevating stroke 0~150mm 0~160mm 0~190mm 0~230mm Power supply 220-240V/50Hz 380V/50Hz Power 2.2KW 4.8KW 6.3KW 8.3KW Dimensions(mm) 765L*400W*1070H 920L*550W*1700H 1250L*600W*2100H 1320L*770W*2340H
Model: RE-LA Series
Usage:
RE-LA Series Large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.
Features:
– Proof-explosive device is optional – Teflon (PTFE) and fluorine rubber dual rotating seal, patented technology to ensure high vacuum. – the introduction of foreign advanced frequency control system, temperature control system, accurate and reliable. – a vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected. – water bath (oil bath is optional) electric lift and manual lift support, easy to use. – PTEE discharge valve, corrosion resistance, pollution-free. – Additional set of glassware is optional
Technical data:
|
Model |
RE-LA-5 |
RE-LA-10 |
RE-LA-20 |
RE-LA-50 |
|||
|
Capacity of Rotary Bottle |
5L |
10L |
20L |
50L |
|||
|
Flanged diameter |
Φ50mm |
Φ95mm |
Φ95mm |
Φ125mm |
|||
|
Capacity of Collecting bottle |
3L |
5L |
10L |
20L |
|||
|

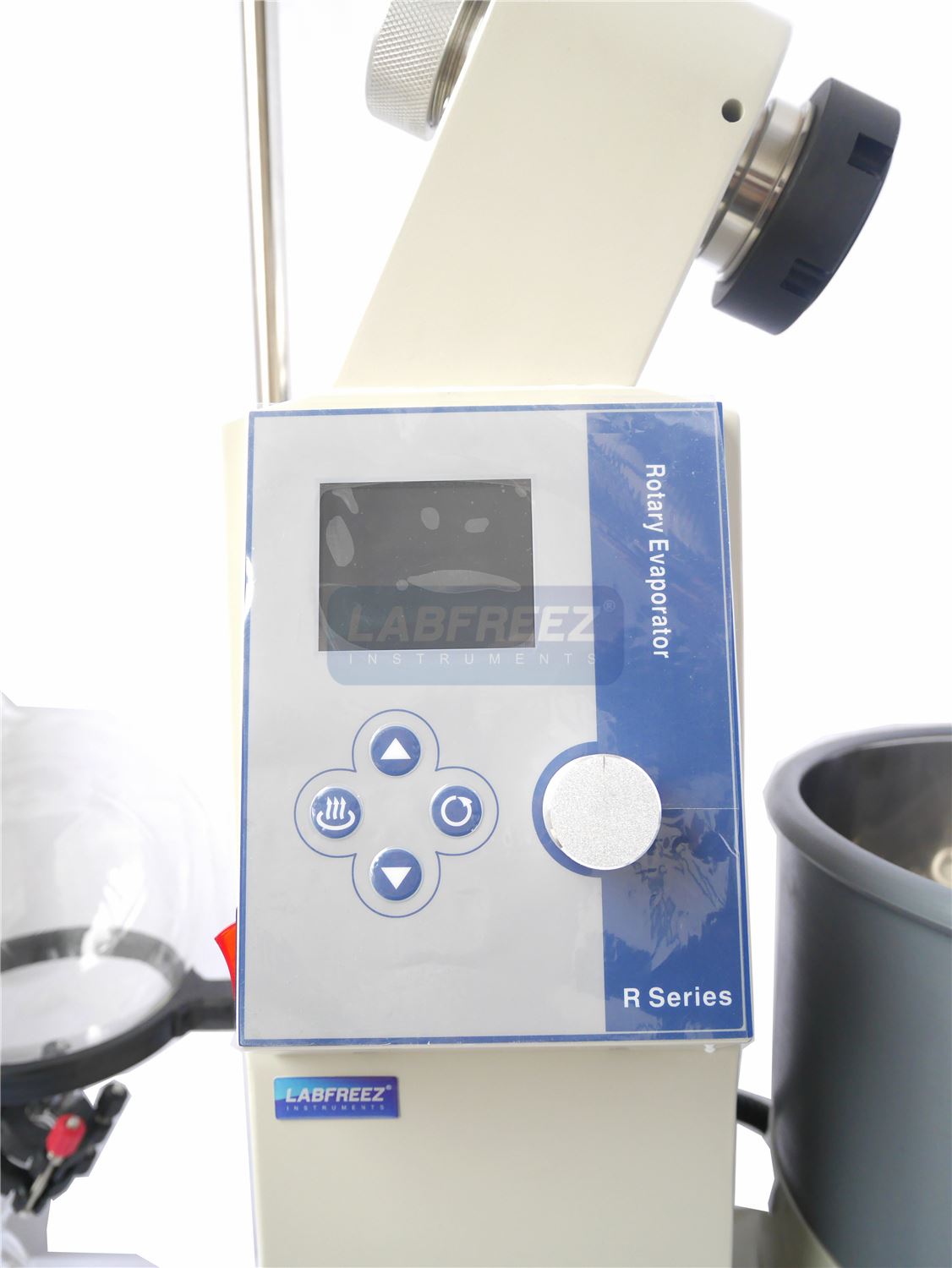

Rotary control |
Digital display, frequency conversion stepless |
||||||
|
Rotary speed |
10to140r/min |
10to130r/min |
10to130r/min |
10to110r/min |
|||
|
Power of rotary motor(W) |
40W |
90W |
120W |
120W |
|||
|
Condensing tube |
Vertical double serpentine tube |
Vertical, main + auxiliary cooling and highly efficient three circulating |
|||||
|

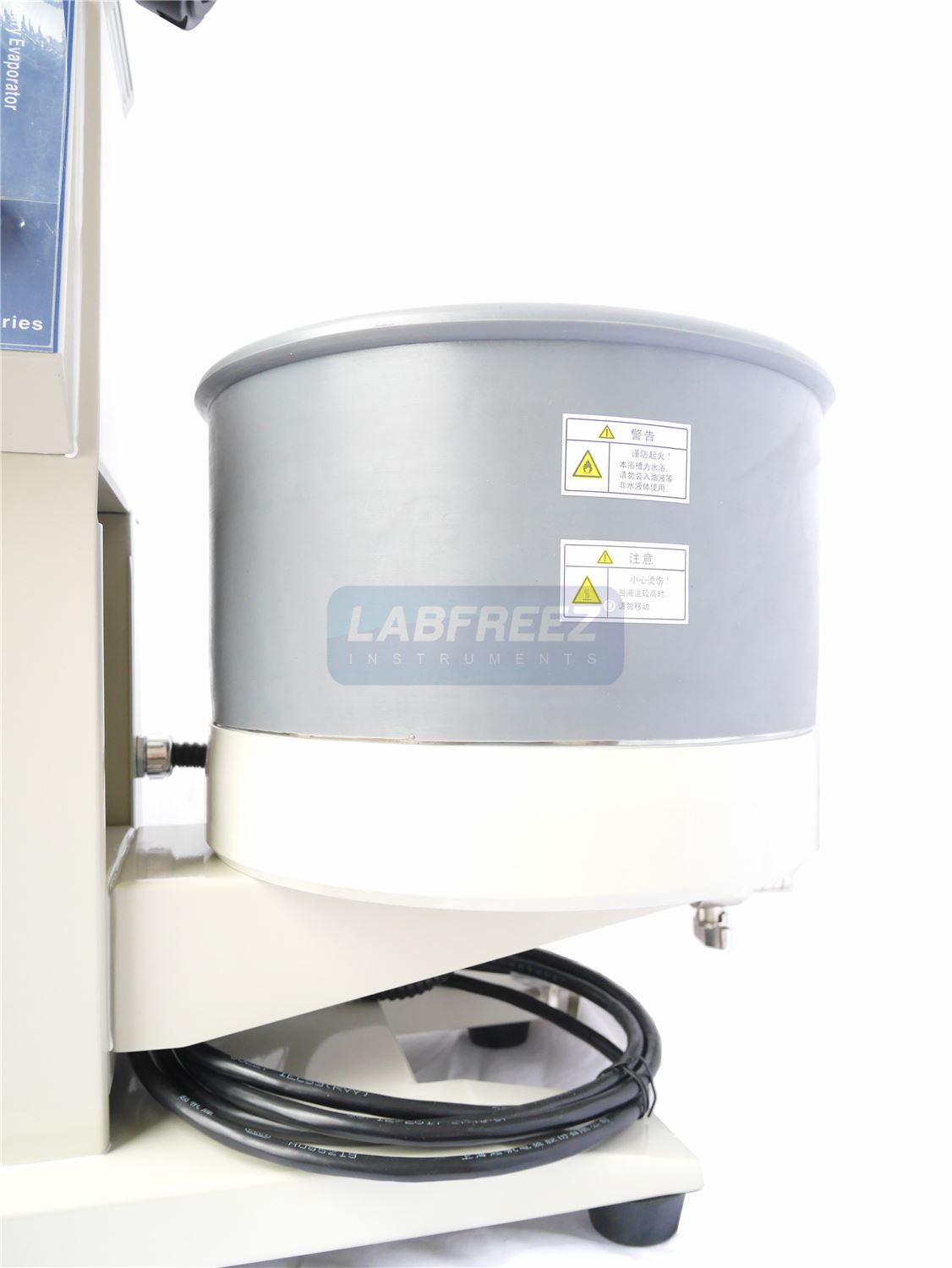

Water Bath |
Stainless steel water bath (Can be changed to oil bath) |
||||||
|
Temp. Range |
Digital display, RT~99°C (Oil bath RT~180°C) |
||||||
|

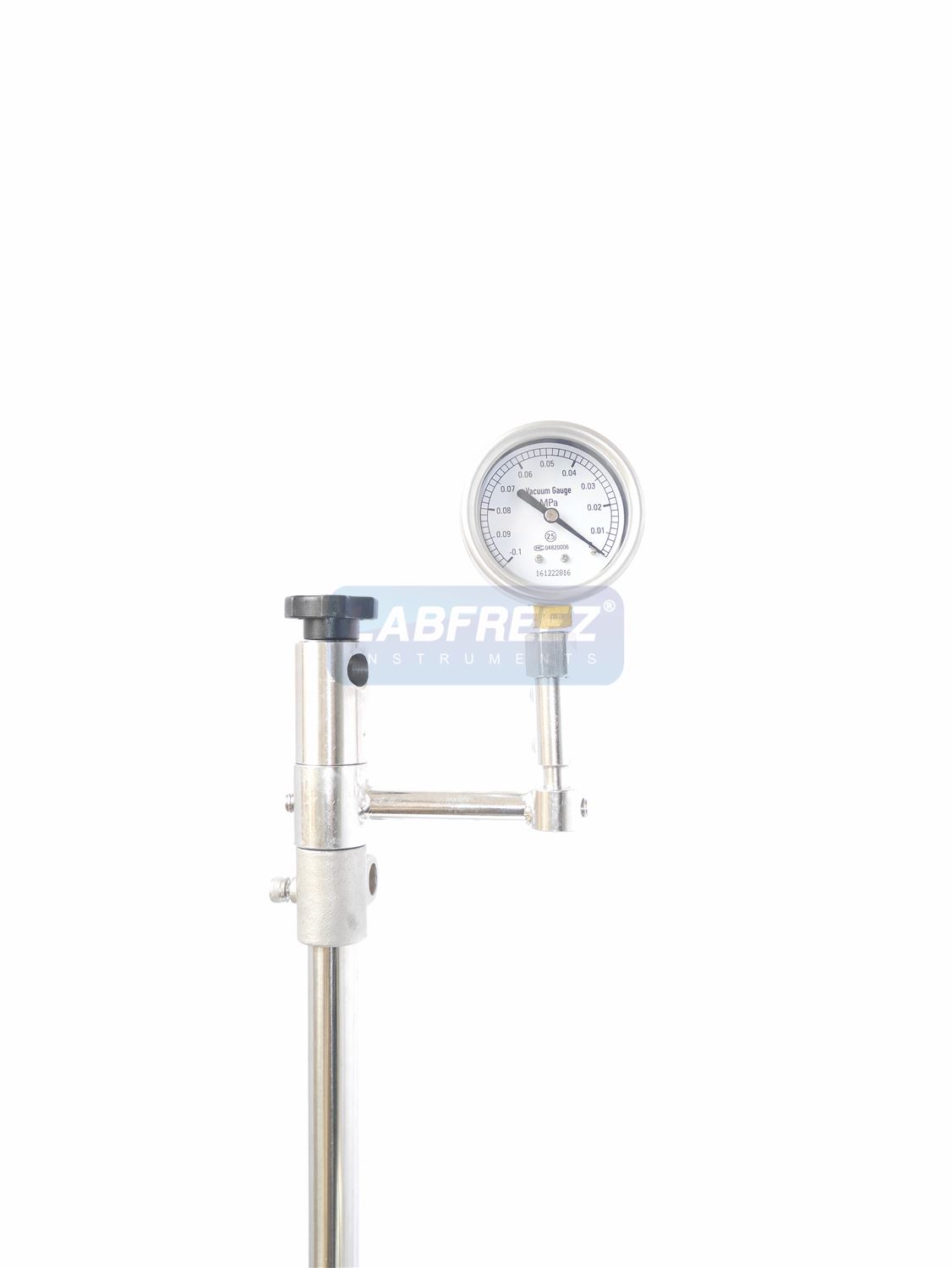

Vacuum degree |
399.9Pa (below 3mmHg) |
||||||
|

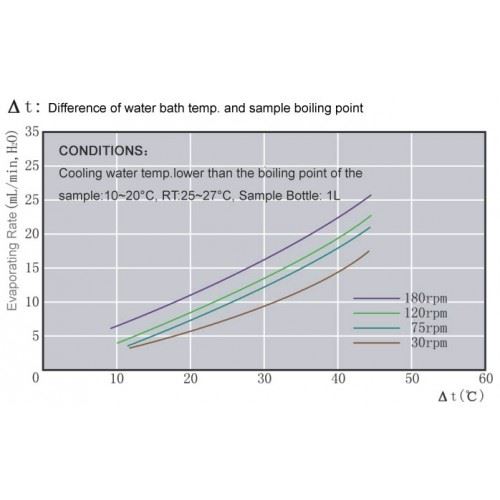

Evaporating capability |
Water≥2L/h Alcohol≥4L/h |
Water≥3.2L/h Alcohol≥6.5L/h |
Water≥5L/h Alcohol≥11L/h |
Water≥9L/h Alcohol≥19L/h |
|||
|
Elevating mode |
Electric |
Electric & manual |
|||||
|
Elevating stroke |
0~150mm |
0~160mm |
0~190mm |
0~230mm |
|||
|
Power supply |
220-240V/50Hz |
380V/50Hz |
|||||
|
Power |
2.2KW |
4.8KW |
6.3KW |
8.3KW |
|||
|
Dimensions(mm) |
765L*400W*1070H |
920L*550W*1700H |
1250L*600W*2100H |
1320L*770W*2340H |
|||
Model
RE-LA-5
RE-LA-10
RE-LA-20
RE-LA-50
Capacity of Rotary Bottle
5L
10L
20L
50L
Flanged diameter
Φ50mm
Φ95mm
Φ125mm
Capacity of Collecting bottle
3L
5L
10L
20L
Rotary control
Digital display, frequency conversion stepless
Rotary speed
10to140r/min
10to130r/min
10to110r/min
Power of rotary motor(W)
40W
90W
120W
Condensing tube
Vertical double serpentine tube
Vertical, main + auxiliary cooling and highly efficient three circulating
Water Bath
Stainless steel water bath (Can be changed to oil bath)
Temp. Range
Digital display, RT~99°C (Oil bath RT~180°C)
Vacuum degree
399.9Pa (below 3mmHg)
Evaporating capability
Water≥2L/h
Alcohol≥4L/h
Water≥3.2L/h Alcohol≥6.5L/h
Water≥5L/h
Alcohol≥11L/h
Water≥9L/h
Alcohol≥19L/h
Elevating mode
Electric
Electric & manual
Elevating stroke
0~150mm
0~160mm
0~190mm
0~230mm
Power supply
220-240V/50Hz
380V/50Hz
Power
2.2KW
4.8KW
6.3KW
8.3KW
Dimensions(mm)
765L*400W*1070H
920L*550W*1700H
1250L*600W*2100H
1320L*770W*2340H
