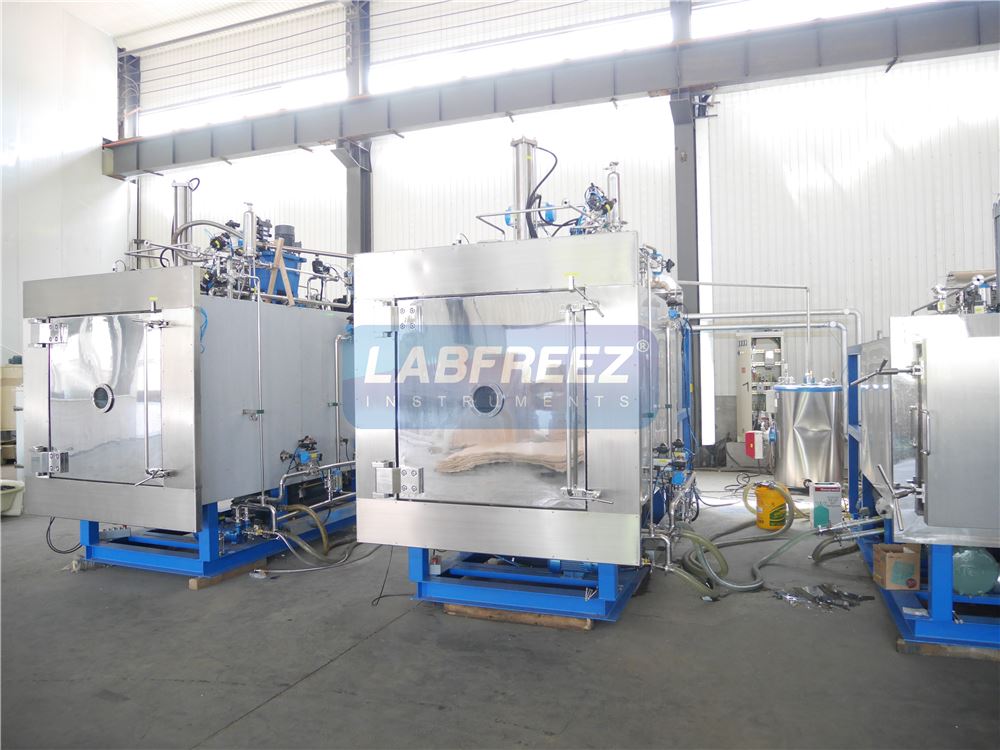

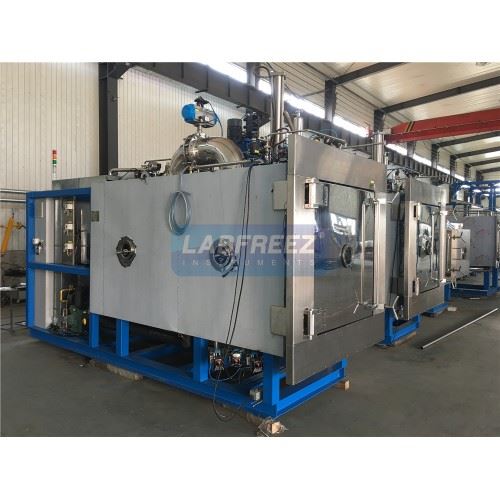

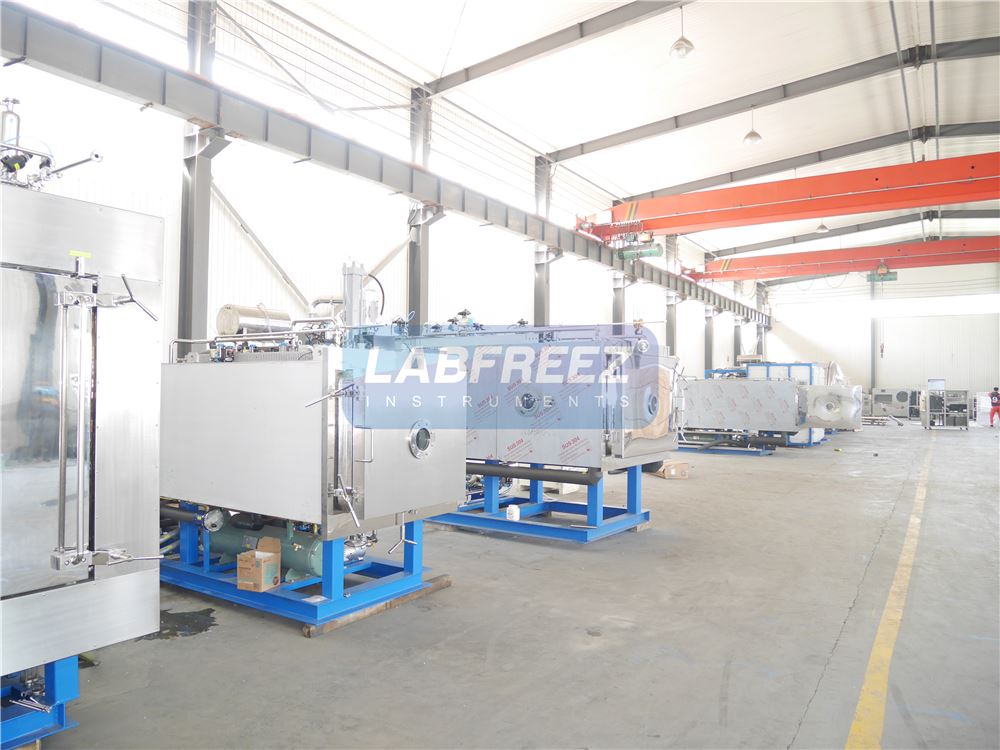

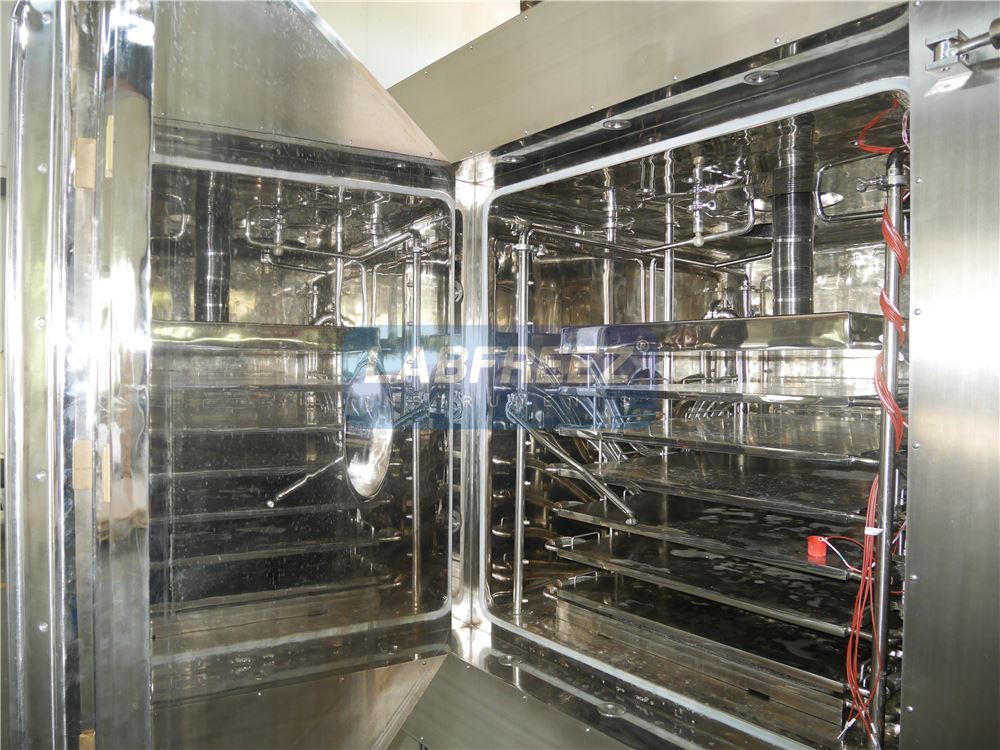

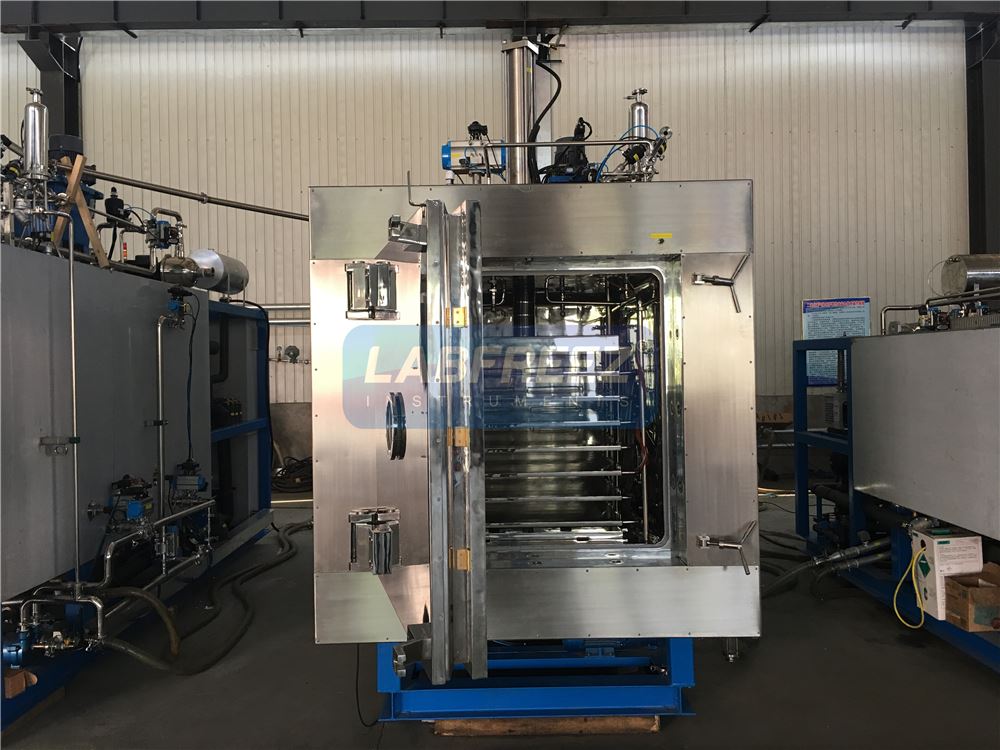

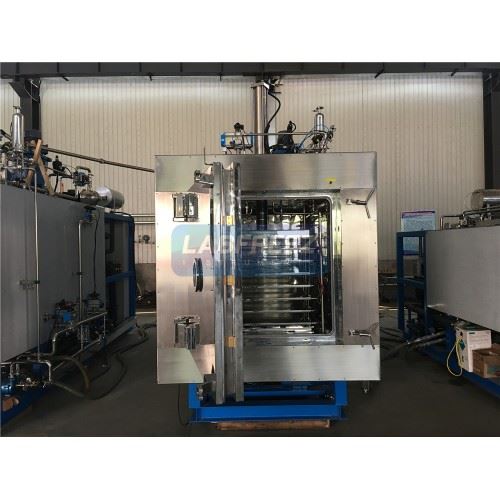

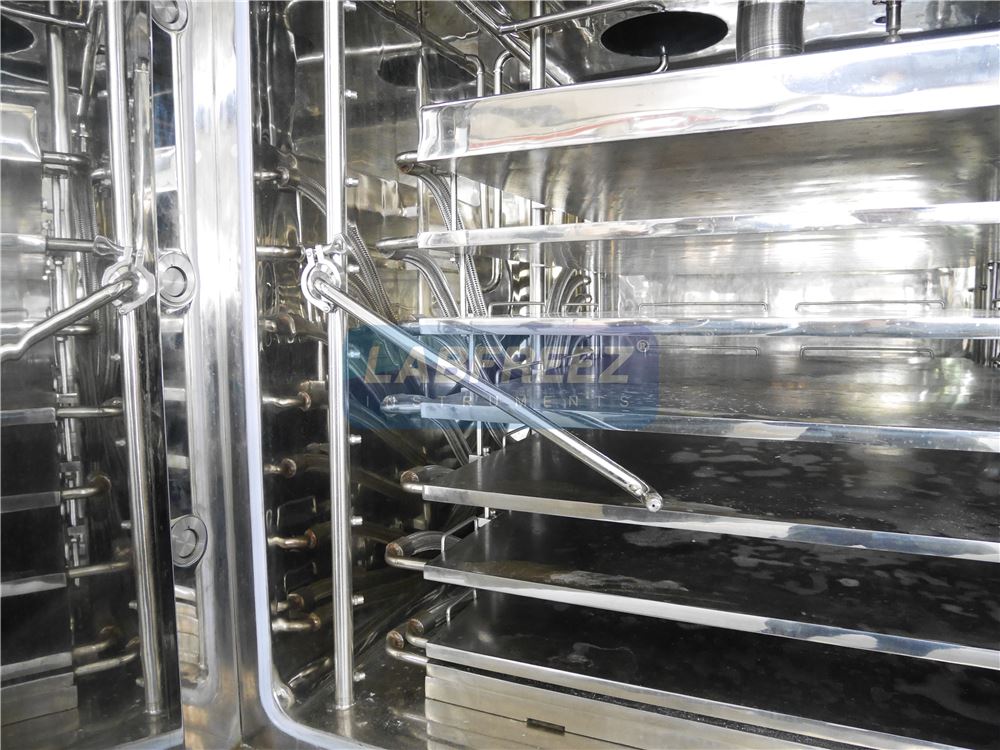

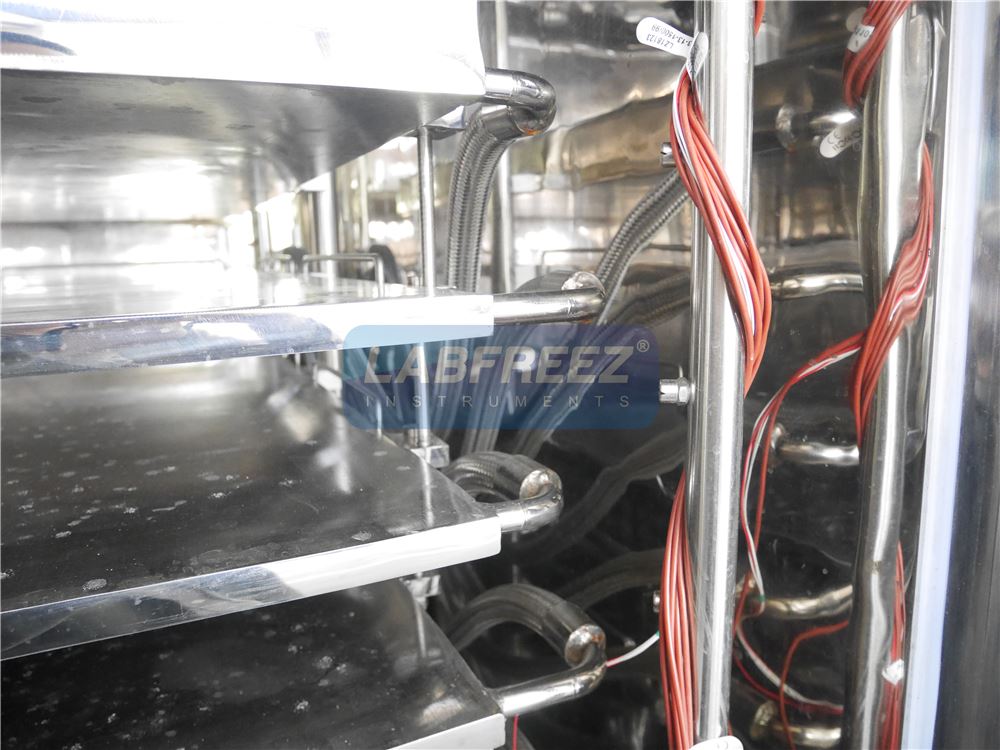

Model: FD-P Series

Model: FD-P Series

Features: Meets with GMP standard; Meets with CE/ISO standard; SIP+CIP is optional; Material made by SS316L to meets with pharmaceutical standards. Well documented included IQ/PQ/OQ/FAT and etc. Parameters Model Unit FD-P3 FD-P4 FD-P5 FD-P8 FD-P10 FD-P15 FD-P20 FD-P25 FD-P30 FD-P40 Parameters ㎡ 3 4 5 8 10 15 20 25 30 40 Effective diaphragm area ㎡ 2.96 4.4 5.5 7.75 10.33 14.76 20.63 24.38 29.7 40.5 Cold trap capacity, MAX KG / batch 40 60 80 120 210 290 410 480 590 800 Vials amount capacity Φ22mm pcs 5300 8000 12700 17800 23700 33900 47400 56000 68300 93000 Φ16mm pcs 10000 15000 24800 34800 46400 66400 92800 109700 133600 182200 Φ12mm pcs 16000 28000 35000 49000 65300 95700 130400 154000 187700 256000 Liquid Material Capacity L 40 60 80 120 210 300 450 500 600 850 Shelf size Long mm 610 915 915 915 1215 1215 1250 1250 1500 1500 Width mm 810 1210 1210 1210 1215 1215 1500 1500 1800 1800 Baffle spacing mm 100 100 100 100 100-120 Shelves quantity pcs 6+1 4+1 5+1 7+1 7+1 10+1 11+1 13+1 11+1 15+1 Maximum temp. of shelf ℃ +70℃ Minimum temp. of shelf ℃ -50℃ Temp. Difference ℃ ± 1 ℃ (equilibrium) Condenser lowest temp. ℃ -70 (No load) Minimum vacuum No load ＜10Pa Cooling water, <30 ℃ ,0.15-0 .2 Mpa (for water-cooled units) m3 / h 4.5 6 11 16 20 27 30 33 36 42 Cooling (for air-cooled units) 2 m above the water-cooled units CIP-WIP，＞65℃，0.15-0.2MPa L / min 100 Compressed air 0.7-1.0Mpa m3/min 0.1 Defrost water (soak) 50 ℃ ,0.1-0 .2 Mpa KG / batch 300 350 400 1200 1500 2000 3000 4000 5000 7000 Installed power KW 16 18 20 30 58 84 105 125 145 170 Weight KG 2800 3500 4200 6000 7000 9000 11000 12000 15000 20000 Long mm 3000 3500 3800 5000 6400 6500 7400 8200 9200 9400 Width mm 1200 1300 1500 1500 2300 2300 2300 2300 2400 2400 Height mm 2700 2800 2900 2800 3200 3400 3800 4000 4000 4500 Note: The device dimensions are for reference only, as the customer actually needs to be adjusted.

Features:

Meets with GMP standard; Meets with CE/ISO standard; SIP+CIP is optional; Material made by SS316L to meets with pharmaceutical standards. Well documented included IQ/PQ/OQ/FAT and etc.

Parameters

Note: The device dimensions are for reference only, as the customer actually needs to be adjusted.

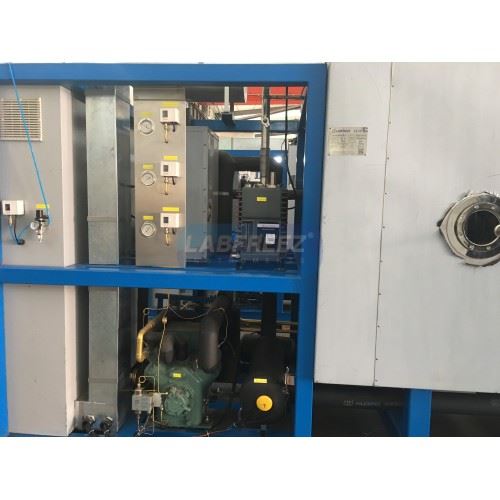

Parts Introduction

	German Bitzer Compressor
	Edwards Vacuum Pump (England)
	Leybold Vacuum Germany
	Germany’s Wilo pump
	Danish Grundfos circulation pump
	Danfoss solenoid valve
	Danfoss expansion valve
	DANFOSS Pressure Gauge & Controller
	Emerson Oil Separator
