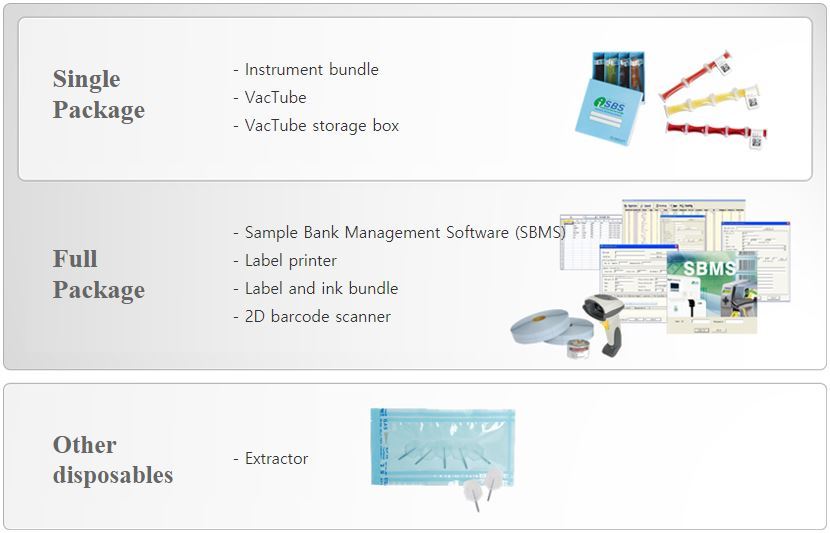

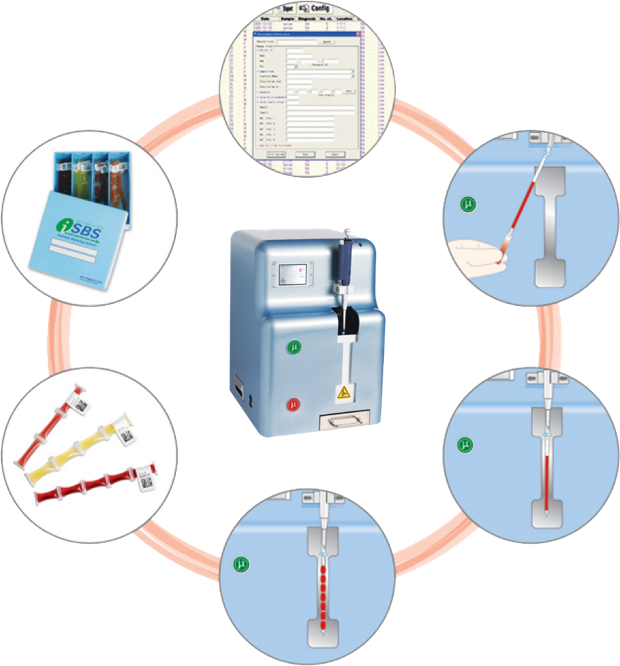

Integrated Sample Banking Solution iSBS is a total biosample banking solution that automatically vacuum-seals samples such as blood, urine, ascite, cerebrospinal fluid and pleural fluid, semi-permanently for purposes such as disease research, drug research, disease tracking, backup, etc.
Feature
– Semi-permanent storage of specimen(sample) using vacuum seal – Sample tube barcode label system – Total solution that includes sample tracking software – One-of-a-kind system – Use of radio-frequency instead of heat-sealing ensures sample is preserved
| Conventional Sample Storage | iSBS | Advantages | |
|---|---|---|---|
| Aliquot | Manual aliquoting of sample to each tube | Automatic vacuum sealing of sample | Time and cost saved |
| Quality | Possible contamination and oxidation of sample | Initial sample quality maintained until use | Semi-permanent quality and immutability of sample |
| Management | Difficult to quickly find desired sample | Effective sample management through label system and management program | Systematic management of sample allows for quick tracking |
| Space | 32,000 tubes or vials in 600L refrigerator | Up to 32,000 samples each of 5 segments in 600L refrigerator, total 160,000 segments | 5 times space utilization |
| Speed | Depends on the ability of the technician and sample | 500 segments per hour | Time and labor saved |
Specification
| Main Unit | |
| Display | 3.2″ TFT Touch Screen |
| Sealing Technology | VLSTM (Vacuum-Like Sealing) EMSTM (Electro-Mechanical Sealing) |
| Sealing Speed | 500 segments / hour |
| Life Expectancy | Semi-permanent |
| Voltage | 110 – 240V / 50 – 60Hz |
| Power Consumption | Idle: 90 W / Operating : 300 W |
| Vactube | |
| Vactube Material | Non-DOP polyvinyl chloride |
| Volume | 1ml or 2ml |
| Number of Segments | Up to 5 segments |
| Sterilization | Ethylene oxide gas |
| Storing Temperature | Up to -86℃ |
| Storage | 30,000 samples / 600 liter freezer |
| Sample Banking Management | |
| Labeling | Zebra Thermal Printer |
| Label | 2D Barcode & Reader |
| Software | SBMS 2.0 (Windows XP/7/8/10) |
| General | |
| Dimension | 330 x 420 x 480 mm |
| Weight | 28kg |
| Warranty | 1 Year |
| Ambient Temperature | 18~28℃ |
| Maximum Humidify | 80% |
21. Yüzyılda Alev Photometrisinde ilk ilerleme BWB Alev Fotometresi, modern teknolojiler kullanarak 5 farklı elementin (Sodyum (Na), Potasyum (K), Kalsiyum (Ca) ve Barium (Ba)) kolaylıkla ve hassas bir şekilde ölçülmesini sağlayan yüksek kalite ve yüksek performanslı bir cihazdır. Cihaz ihtiyacınız olan herşey içinde dahil bir şekilde elinize ulaşır ve propan veya bütan gazına bağladığınız anda...
Detayı Görüntüle
Model: RE-52AA Model: RE-52AA Basic parameters Model RE-52AA Glass Material GG-17 Bracket Material Spraying anticorrosion Material of pot shell Spraying anticorrosion 250*365*150mm Material of Pan gallbladder Stainless steel 240*120mm Rotating bottle volume 1L 24#Standard mouth Collect bottle volume 0.5L 24#Standard mouth vacuum degree 0.098Mpa Rotating power 30W Rotating speed 0-120rp...
Detayı Görüntüle
Model: RE-5299 Model: RE-5299 Basic parameters Model RE-5299 Glass Material GG-17 Bracket Material Spraying anticorrosion Material of pot shell Spraying anticorrosion 265*310*80mm Material of Pan gallbladder Stainless steel 250*140mm Rotating bottle volume 1L 24#Standard mouth Collect bottle volume 0.5L 24#Standard mouth vacuum degree 0.098Mpa Rotating power 30W Rotating speed 0-120rpm...
Detayı Görüntüle
Model: RE-2010 Model: RE-2010 Rotary evaporator RE-2010 Basic parameters Model RE-2010 Glass Material GG-17 Bracket Material Aluminum alloy Material of Pan gallbladder Aluminum alloy + Teflon composite pot, fully closed heating Rotating bottle volume 1L 29#Standard mouth(Optional500-3000ml) Collect bottle volume 1L 35#Ball mill vacuum degree 40W Rotating power 20-195rpm Rotating speed 20m...
Detayı Görüntüle
Model: RE-201D Model RE-201D Glass Material GG-17 Bracket Material Stainless steel Material of pot shell Spraying anticorrosion 370*300*260mm Material of Pan gallbladder Stainless steel 240*160mm plate size 255*330mm Rotating bottle volume 1L 24# Standard mouth Collect bottle volume 1L Ball mill mouth label vacuum degree 0.098Mpa Rotating power 30W Rotating speed 0-120rpm heating power...
Detayı Görüntüle
Model: RE-2000A Model: RE-2000A RE-2000A rotary evaporator is the latest intelligent rotary evaporator developed by our company. The device uses two-line large-capacity blue backlight liquid crystal display as the human-machine interface of the device. In the control part,the high performance single chip computer is used as the main control chip, and the control object is formulated. Using spec...
Detayı Görüntüle
Model: RE-2000B Model: RE-2000B Basic parameters Model RE-2000B Glass Material GG-17 Bracket Material Aluminium alloy Material of Pan gallbladder Teflon composite pot, fully closed heating Rotating bottle volume 1L 24#Standard mouth Collect bottle volume 1L 35#Ball mill vacuum degree 40W Rotating power 0-180rpm Rotating speed 1.5KW heating power 0-99℃ Temperature control range of bathtub ...
Detayı Görüntüle
Model: RE-52A Model: RE-52A RE-52A rotary evaporator is developed by applying the principle of constant temperature heating and thin film evaporation under vacuum and negative pressure. The instrument is controlled by imported high-grade frequency converter. Stepless speed regulation makes the glass rotary bottle rotate at constant speed. Material forms a large area of uniform film on the wall ...
Detayı Görüntüle
Model: RE-301 Model: RE-301 Rotary evaporator product characteristics: Condenser suction nozzle is lower, which is safer after connecting with vacuum tube. Modular design with strong expansibility Easy lifting operation, smooth upward and downward movement, and easy locking. Special motor, worm gear and worm drive smoothly Speed display, easy to operate and intuitive Temperature is controlled b...
Detayı Görüntüle
Model: RE-LA-100 Model: RE-LA-100 100L Rotary Evaporator This equipment is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries. The principle is that under vacuum condition, the temperature is heated at a constant temperature, so that the rotating bottle rotates at a constant speed, and the mate...
Detayı Görüntüle
Model: RE-1002 Model: RE-1002 RE-1002 10 liters Rotary Evaporator, Rotovap Basic parameters Model RE-1002 RE-1002EX explosion-proof Glass Material GG-17 GG-17 Bracket Material Stainless steel 304Stainless steel Material of pot shell Spraying anticorrosion 490*430*540mm Spraying anticorrosion 490*430*540mm Material of Pan gallbladder Stainless steel 350*220mm 304Stainless steel 350*220mm plate s...
Detayı Görüntüle
Model: RE-5PROE Model: RE-5PROE RE-5PROE LED Digital Rotary Evaporator is an essential instrument in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It can be combined with vacuum pump, vacuum controller and circulating chiller to provide excellent distilling solutions in a wide range of applications. Features: 5L heating bath with a wide temp...
Detayı Görüntüle
Model: RE-5PRO Model: RE-5PRO Features Easy to read large digital LCD screen displays heating temperature, rotation speed and timing Speed range from 20 to 280 rpm Large 5L water-oil heating bath with heating temperature range of RT to 180°C Heating bath with precise temperature control and adjustable safety circuit Designed a detachable operating panel allows remote control Patented condenser(...
Detayı Görüntüle
Model: RE-2 Series Model: RE-2 Series Usage: RE-2 series rotary evaporator for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate. The products can be made into system devices with Multi-purpose Circulating Water Vacuum Pump, Diaphragm Vacuum Pump, Low T...
Detayı Görüntüle
Model: RE-LA-20 Model: RE-LA-20 RE-LA Rotary Evaporator rotovap with heating water bath, 5 to 50 liters RE-LA Series rotary evaporator rotovap used large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small...
Detayı Görüntüle
Model: RE-2002 Model: RE-2002 Model RE-2002 RE-2002EX Glass Material GG-17 GG-17 Bracket Material Stainless steel Stainless steel Material of pot shell Spraying anticorrosion 630*534*638mm Spraying anticorrosion 630*534*638mm Material of Pan gallbladder Stainless steel 450*250mm Stainless steel 450*250mm plate size 534*504mm 534*504mm Rotating bottle volume 20L ￠95Flange mouth 20L ...
Detayı Görüntüle
Model: RE-5203 Detailed introduction: Operation pressure Decompression Structural style Vertical Appearance Spiral tube Moving condition Internal circulation Application: Rotary evaporator using a rotary evaporator flask (flask), increasing the evaporation area, is placed in a water bath under reduced pressure, a device rotating while heating, make the solution in the bottle diffuse and evapora...
Detayı Görüntüle
Model: RE-3000B Model: RE-3000B Model RE-3000A RE-3000B RE-3000E Glass Material GG-17 Bracket Material Aluminium alloy Material of Pan Aluminium alloy+Teflon composite pot, fully closed heating,250*130mm Rotating bottle volume 3L ￠50Flange mouth Collect bottle volume 2L 35#Ball mill vacuum degree 40W Rotating power 0-180rpm Rotating speed 1.5KW heating power 0-99°C Temperature control ran...
Detayı Görüntüle
Model: FIM Series Model: FIM Series Features: Small ice shape, granular amorphous ice, which can penetrate into the narrow space, effectual ice bath, specialized for laboratory. Italy 5 reducer technology, well-known brand chillers, low noise Double helix squeezes ice method, Small size to save space, reduce laboratory space occupied. Stainless steel shell, beautiful and practical. Fast & quali...
Detayı Görüntüle
Model: RE-LA Series Usage: RE-LA Series Large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, ...
Detayı Görüntüle
Model: RE-LA Ex Series Model: RE-LA Ex Series Labfreez™ Large capacity vacuum rotary evaporator, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water ...
Detayı Görüntüle
Model: RE-5003 Model: RE-5003 Basic parameters Model RE-5003 RE-5003EX Glass Material GG-17 GG-17 Bracket Material Stainless steel 304Stainless steel Material of pot shell Spraying anticorrosion 710*620*700mm Spraying anticorrosion 710*620*700mm Material of Pan gallbladder Stainless steel 550*320mm 304Stainless steel 550*320mm plate size 804*574mm 804*574mm Rotating bottle volume 50L ...
Detayı Görüntüle
Model: RE-LA-5 Model: RE-LA-5 Usage: Large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low...
Detayı Görüntüle
Model: RE-2000E Model: RE-2000E Basic parameters Model RE-2000E Glass Material GG-17 Bracket Material Aluminium alloy Material of Pan gallbladder Teflon composite pot, fully closed heating Rotating bottle volume 1L 24#Standard mouth Collect bottle volume 1L 35#Ball mill vacuum degree 40WBrushless motor Rotating power 0-180rpm Rotating speed 1.5KW heating power 0-99℃ Temperature control ra...
Detayı Görüntüle
Model: RE-2S-VD Model: RE-2S-VD Brief description: The rotating evaporator manufacturer RE-2S-VD was developed using the principle of vacuum negative pressure, constant temperature heating, and thin film evaporation. The imported high-end frequency converter is used to control the stepless speed adjustment to make the glass rotating bottle rotate at a constant speed. The material forms a large ...
