AIR JET SIEVE E200 LS

As the inventor and world market leader of air jet sieving, Hosokawa Alpine has been setting new standards for more than 60 years. ALPINE air jet sieves have always been characterised by simple operation and reliable results. And there’s no end in sight to this success story: we have not only increased the comfort but also at the same time the efficiency and speed. The latest features allow you to always remain in full control.

– High reproducibility and comparability – Simple operation thanks to integrated software packages – Automated and innovative user guidance – 100 % Made in Germany

OPTIMAL RESULTS THROUGH MAXIMUM EFFECTIVENESS

OPTIMAL RESULTS THROUGH MAXIMUM EFFECTIVENESS

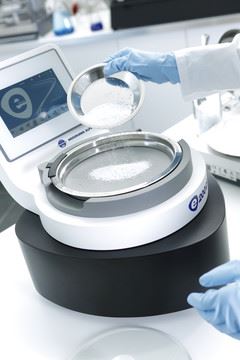

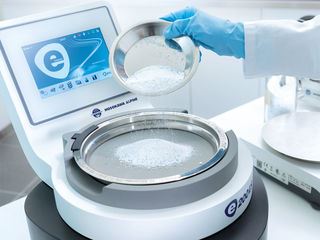

Because extremely fine powders tend to agglomerate and therefore clog up the sieve, the air jet sieve is the device of choice for sieving fine powders. This is where the air jet sieve e200 LS develops maximum effectiveness. Not just one, but two components work together here: a slotted nozzle which rotates inside the sieving chamber and an industrial vacuum cleaner connected up to the sieving chamber.

Once the vacuum cleaner is switched on, it creates a vacuum inside the sieving chamber. The extremely narrow slot of the slotted nozzle ensures that the incoming air is accelerated and flows through the sieve cloth at high speed from below. The particles on the sieve cloth are dispersed briefly by the air jet at the cover – even before they are pulled downwards through the sieve cloth by the suction of the vacuum cleaner. The effect: the fine material is separated quickly and effectively. The coarse material remains on the sieve and is reweighed at the end of the sieving process.

A further advantage: the automatic underpressure regulation as well as specification of the sieving-relevant parameters guarantee reproducible results.

Features – GLARE-FREE 7-INCH PANEL: Readable even under demanding lighting conditions and from just about any angle. – SMART TOUCH SCREEN: Touch screen with robust 3-mm-thick safety glass. – INTUITIVE USER GUIDANCE: Modern visualisation for fast, easy and precise operation. – SECURE RESULTS MANAGEMENT: Analysis and data reports with archiving and search functions as well as automatic backup. – INDIVIDUAL APPLICATIONS: Password-protected settings, customisable display accuracy, migration of legacy data in XML format. – IDEAL CONNECTIONS: Ethernet, RS-232 and 3 × USB, e. g. for a barcode scanner, keyboard and mouse.

Technical specifications

Applications Separation, fractionation and particle size analysis of powders in various industries:

– Minerals – Chemicals production – Pharmaceuticals – through compliance with 21 CFR Part 11 – Toner production – Food and nutrition industry – Cement and construction material applications

UPGRADEABLE AT ANY TIME

UPGRADEABLE AT ANY TIME

eControl software options

LITE

LITE

– Fast analysis – Simple one-touch operation – Graphic user interface – Underpressure (in Pa), sieving time, date and time are displayed – Underpressure manually adjustable – Connection of different vacuum cleaners (LITE only) – (comparable to A 200 LS)

BASIC

BASIC

– LITE Features, plus: – Fast, simple analysis of results (in table form) – Central parameter management of all sieves – Choice of 12 different languages – Balance communication via RS 232 interface – (comparable to 200 LS-N)

ULTIMATE

ULTIMATE

– BASIC Features, plus: – Analysis of results against set-point specification (table and graph form) – Automatic backup – Automatic saving and printing – Individual display accuracy – Different diagram types – Parameter management per test sieve – Sieve set management (SOP)

SECURITY

SECURITY

– ULTIMATE Features, plus: – Requirements for the software validation divided into ISPE GAMP 5, FDA 21 Part 11, EC GMP Annex 11 compliant – User administration – Password management – Audit trail – user activity monitoring and event logging – e-signature – Network connection required

UPGRADE YOUR ALPINE AIR JET SIEVE

UPGRADE YOUR ALPINE AIR JET SIEVE

Optimized software and hardware

Please note that eControl PROFESSIONAL expires (latest version 1.3.11). Software usage is still possible, but there is no option for an update to an 1.4.x version. We recommend an upgrade to ULTIMATE. Some ULTIMATE and SECURITY features require network connection.

Current software updates require the HMI 2.0 operating display (integrated as standard in the e200 LS air jet sieve of newer model years). For units with HMI 1.0 operating display (year of manufacture 2010-2015 ) we offer an upgrade kit to HMI 2.0. This makes it possible to replace the panel without any problems. Numerous accessories as well as adapters for operation with other vacuum cleaners are available.

Software Features in detail

INNOVATIVE, DIGITAL, AUTOMATED

INNOVATIVE, DIGITAL, AUTOMATED

Operation made easy

The Airjet Sieve e200 LS menu navigation is simple and well-defined. 12 languages available. Comprehensible symbols on the intuitive touch screen guarantee high operating comfort.

SETTINGS System information, date / time, network, balances, sieving, numerical formats, units of measurement, etc.

SIEVING Manual sieving, sieving according to SOPs (Standard Operation Procedure)

TEST SIEVE MANAGEMENT Individual assignment of underpressure and sieving time parameters, etc.

SOP MANAGEMENT For the creation and management of sieving processes

ARCHIVE Retrieval and evaluation of the stored sieving processes

USER ADMINISTRATION User generation and management with different authorisation levels

A MAJOR FACELIFT – INNOVATIVE HARDWARE AND SMART SOFTWARE

A MAJOR FACELIFT – INNOVATIVE HARDWARE AND SMART SOFTWARE

Check out the latest features of our air jet sieve – The market leader in terms of technology.

– QUIETER OPERATION : 50 % quieter than its predecessor! The new intake duct with optimised air flow geometry and the new suction silencer make it possible!

– NEW DIAGNOSTIC TOOL : All electronic components are now monitored automatically by status LEDs – throughout the entire service life.

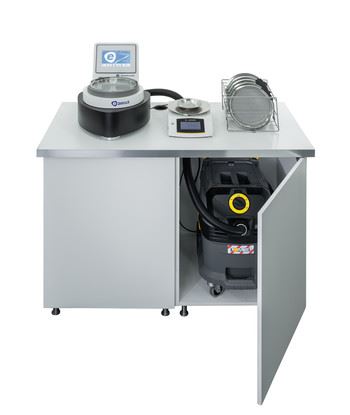

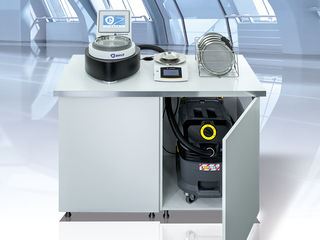

– KÄRCHER VACUUM CLEANER : The new and powerful vacuum cleaner from Kärcher® with filter cleaning is the professional solution for the production line and laboratory.

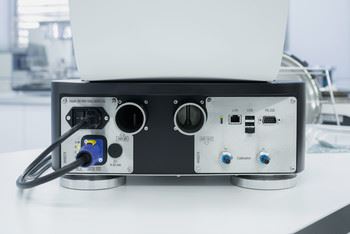

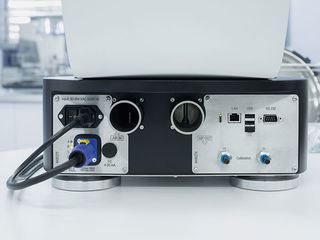

– CONNECTION CONCEPT : A neat connection concept on the rear of the device – cables and connections are now integrated into the device and are therefore less susceptible to electronic interference.

– MODULAR FUNCTIONALITY : The new suction opening enables a wide range of different possibilities – dehumidification / cooling as well as the remote intake and feeding of additives is now no trouble at all.

– UPGRADE ANYTIME AS REQUIRED : All eControl software packages: LITE, BASIC, ULTIMATE, SECURITY run on the same hardware.
