Model: FD-18 Series

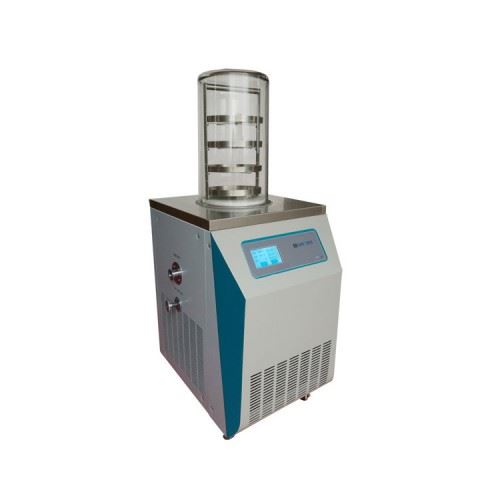

FD-18 series Freeze Dryer(Lyophilizer) is applicable for freeze-drying test of laboratory samples and suitable for small amount of production.
Specifications
| Model | FD-18-R | FD-18-MR | FD-18-TP | FD-18-MTP | FD-18-MT | |
| Dry chamber size (D*H) | Ф300 × 445mm | Ф300 × 465mm | Ф300 × 540mm | Ф300 × 570mm | / | |
| Total shelf area | 0.18 m2 0.27 m2 |
0.18 m2 0.27 m2 |
0.09 m2 | 0.09 m2 | / | |
| Shelf size (mm) | Ф240 * 4pcs Ф240 * 6pcs |
Ф240 * 4pcs Ф240 * 6pcs |
Ф200 * 3pcs | Ф200 * 3pcs | / | |
| Shelf space height (mm) | 70 50 |
70 50 |
70 | 70 | / | |
| Vials load capacity | Ф12mm | 1320 Pcs 1980 pcs |
1320 Pcs 1980 pcs |
990 Pcs | 990 Pcs | 24 ports T-manifold 430×480mm (H*L) Flask rack: 610×600mm |
| Ф16mm | 740 Pcs 1110 pcs |
740 Pcs 1110 pcs |
555 Pcs | 555 Pcs | ||
| Ф22mm | 360 Pcs 540 pcs |
360 Pcs 540 pcs |
270 Pcs | 270 Pcs | ||
| Sample load capacity | 1.8L 2.7L |
1.8L 2.7L |
0.9L | 0.9L | ||
| Flask | / | 8 pcs | / | 8 pcs | / | |
| Dry rack | Included | Included | Included | Included | / | |
| Cold trap rack | Included | Included | Included | Included | Included | |
| Condenser Temp. | <-60°C (-80°C or even lower is optional) | |||||
| Cold trap size | Ф270 * 400 mm (Depth * Height) | |||||
| Ice capture capability | 6 Kg/24h | |||||
| Cold type | Air-cooled | |||||
| Defrost type | Natural (Electric is optional) | |||||
| Ultimate Vacuum | <5 Pa | |||||
| Vacuum pump | Included | |||||
| Pump rate | 4L/S | |||||
| Power | 1400W | |||||
| Voltage | 220v/50Hz or 110v/60Hz | |||||
| Dimensions | 540×610×(963+445)(mm) | |||||
| Weight | 170 kg | 185kg | 185kg | 195kg | 105 kg | |
Specifications of vacuum pump
| Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2C | 2XZ-4C | 2XZ-6C | 2XZ-8C | 2XZ-15C | ||||
| Pumping Speed: L/S | 0.5 | 1 | 2 | 4 | 6 | 8 | 15 | ||||
| Ult. Vacuum Pa |
Without gas ballast | ≤6×10-2 | |||||||||
| With gas ballast | ≤6.5 | ≤1.33 | |||||||||
| Speed: r/min(50HZ) | 1400 | ||||||||||
| Power Required: Kw | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | ||||
| Diameter of inlet port: mm | 16 | 16 | 25 | 25 | 40 | 40 | 40 | ||||
| Temp. rise of pump oil: °C | ≯40 | ≯45 | ≯45 | ≯65 | ≯70 | ||||||
| Oil capacity: L | 0.60 | 0.70 | 0.10 | 1.2 | 2.0 | 3.0 | 4.0 | ||||
| Overall Dimensions: mm | 447 168 260 |
469 168 260 |
514 168 282 |
514 168 282 |
565 200 342 |
650 240 430 |
770 240 430 |
||||
| Weight: kg | 16 | 17 | 20 | 22 | 40 | 60 | 75 | ||||
Standard Configuration
– Stainless steel condenser with opening, stainless steel operation tops, seamless welding with round corner which is anti-corrosion and easy to clean – Stainless steel shelf & rack, 4 or 6 pcs shelves optional, shelf removable and spacing height adjustable – Stainless steel pre-cooling rack with metal cover – Integrally molded glass dried barrel adopted special plastic will not break – Used SECOP (DANFOSS) quality compressor, high performance condenser fan, LCD touch display, history data can be stored, searched and exported to computer.
| Model | R | TP | MR | MTP | MT |

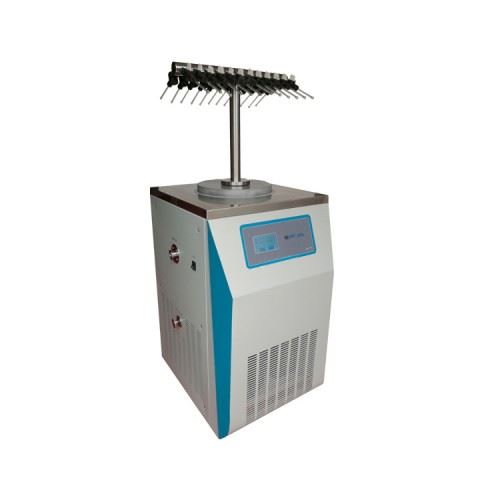

| Description | Normal type | Stopper device | Stopper + flasks | Flasks system | Multi-ports manifold |
| Freeze Dryer | ● | ● | ● | ● | ● |
| Glass barrel | ● | ● | ● | ● | |
| Vacuum pump | ● | ● | ● | ● | ● |

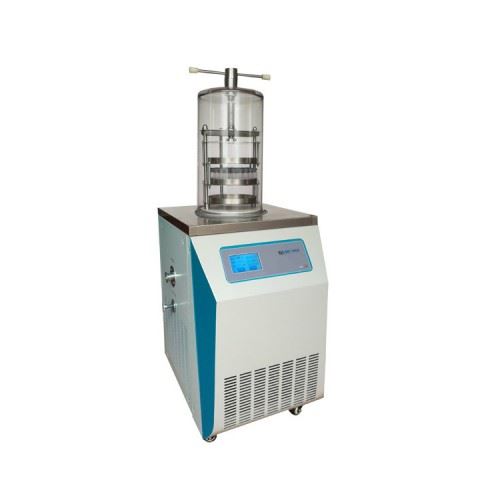

| Stoppering device | ● | ● | |||
| Manifold Ports | 8 ports (28/ 32mm), each 2 in 1000ml, 500ml, 250ml, 100ml |
12 or 24 ports | |||
Optional List
| Item No. | Item Name | Item No. | Item Name |
| FD1001 | -80°C Condenser | FD1009250 | 250ml flask |
| FD1002 | RS232 & Software | FD1009500 | 500ml flask |
| FD1003 | Defrost device | FD10091000 | 1000ml flask |
| FD1004 | Refrigerant R404a, R502, R23 and etc | FD1010 | Leybold vacuum pump |
| FD1005 | Oil mist filter | FD1011 | Touch LCD display |
| FD1006 | Shelves heating & Program segment control Can stored 16 programs, each program can be set up 36segments, correct program data in computing, memorize the drying curve |
FD1012 | Anti-back oil device |
| FD1007 | Additional trays (6pcs) | FD1013 | Eutectic point test device |
| FD1008 | Removable lid for drying drum | FD1014 | Vial capper |
| FD1009100 | 100ml flask | FD1015 | Ampoules sealing machine |
