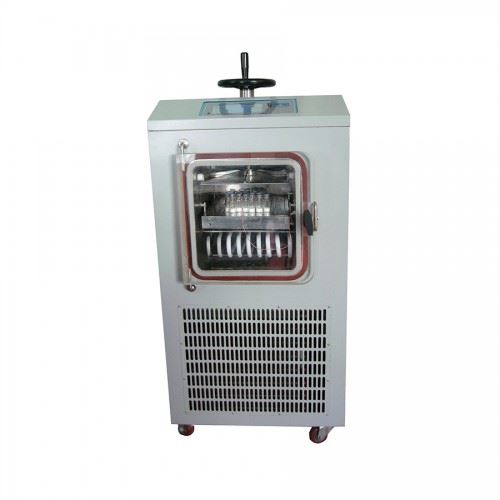

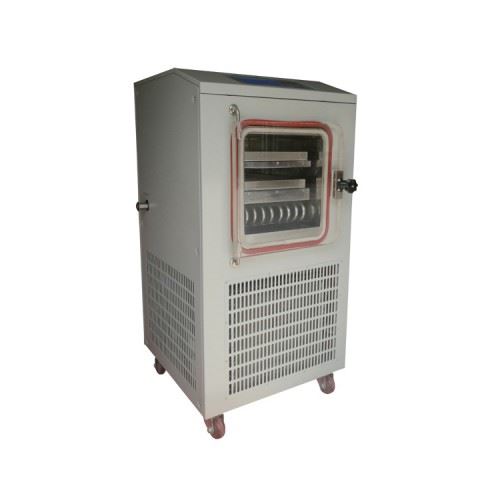

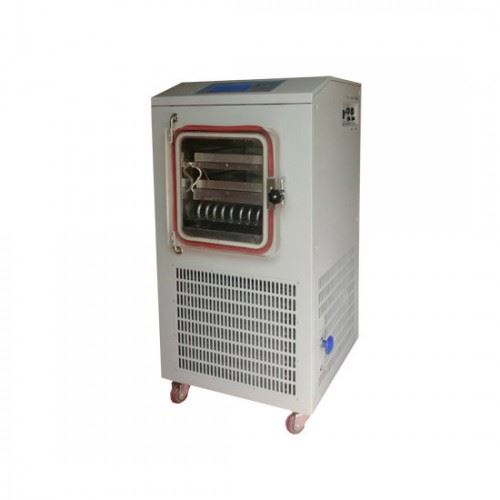

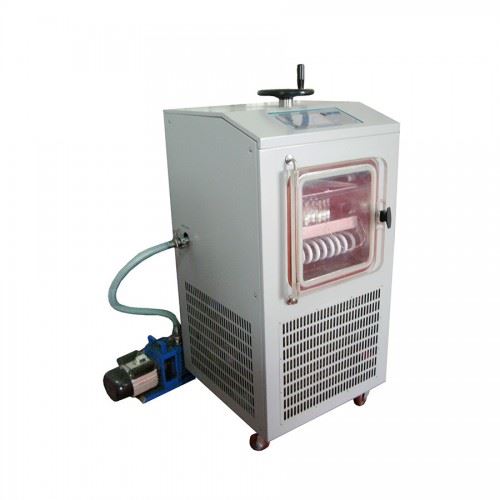

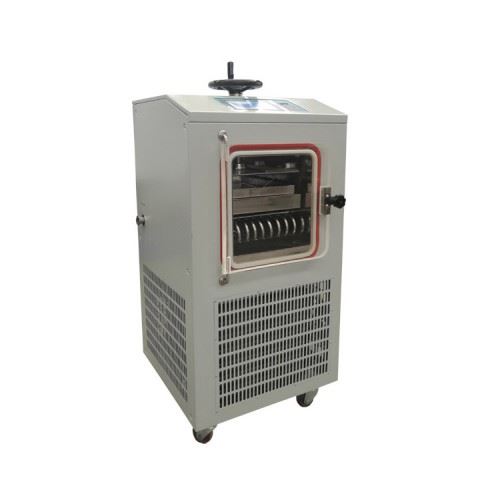

FD-10F series In-situ Freeze Dryer, Laboratory Vacuum Lyophilizer

FD-10F series In-situ Freeze Dryer, Laboratory Vacuum Lyophilizer

Features: Chamber

– Rectangular type dry chamber, Pre-freezing, drying in same chamber without any manual operation. – Drying chamber & shelves made by polished SS 304 or material contact parts SS316 is optional, adopted high strength, high transmittance plexiglass door, easy to observe, inside round corner, easy to clean. – Oil circulation heating type with high temperature precision control, usually suitable for medical, bio field, electric heating type suitable for food field. – GUNDFOS shielded circulating pump and PID control electric heating component; circulation liquid used Low-temperature low- viscosity silicone oil. – Shelves heating system uses safe voltage, while heating rate controllable. (Electric heating type) Condenser (cold trap)

– Made by SS304 drum-type cold trap, with high transmittance plexiglass door, Integrity or separately condenser and chamber can be chosen. – Patented gas diversion technology, cold trapping ice even, ice-catching ability. Refrigeration

– Dual-stage cooling, famous hermetic compressor which is low noise, capillary throttling technology, air-cooled or water-cooled is available. – Brazed plate heat exchanger. – Environmental-friendly refrigerant. Control

– Flexible manual + automatic control, manual groping process, automatic batch production. – PLC control with 7’ LCD touch graphic display, can be operated in auto, semi-auto and manual mode. – Shelf temperature adjustable, controllable, explore suitable for pilot and production processes. – 32 programs, each program can be set as 36 segments, curve can be stored, processing parameters can be modified in real time. – Built with recorder, with USB interface data can be exported to computer for analysis, FD-LYO software & computer is optional for controlling by remote way. – sensor calibration function, to ensure long-term use of the accuracy of the measured value. – Real-time alarm display and historical alarm inquiry function, convenient fault diagnosis and equipment maintenance. – Users can set the level and password, decentralized operation and management. Vacuum

– Two-stage rotary vane vacuum pump, vacuum is automatic adjust and can be set (optional). – Ultimate vacuum can reach 5 Pa, in order to reach highest vacuum, Leybold brand vacuum pump is optional. Others

– Normal type suitable for bulk raw products like food, fruit, herbal medicine and bio material. Stoppering type suitable for vials comes with cap, to stoppering caps into the vials. – Inflatable (water) valve with a safety diaphragm valve can be connected to the inert gas source, dry and filled with inert gas, to extend the shelf life of the material. – CE/ISO 9001 13485 14001 certificated. – Can be conforms to GMP standard.

Specifications
